Emerson A6500-UM Universal Measurement Card
Emerson A6500-UM Universal Measurement Card

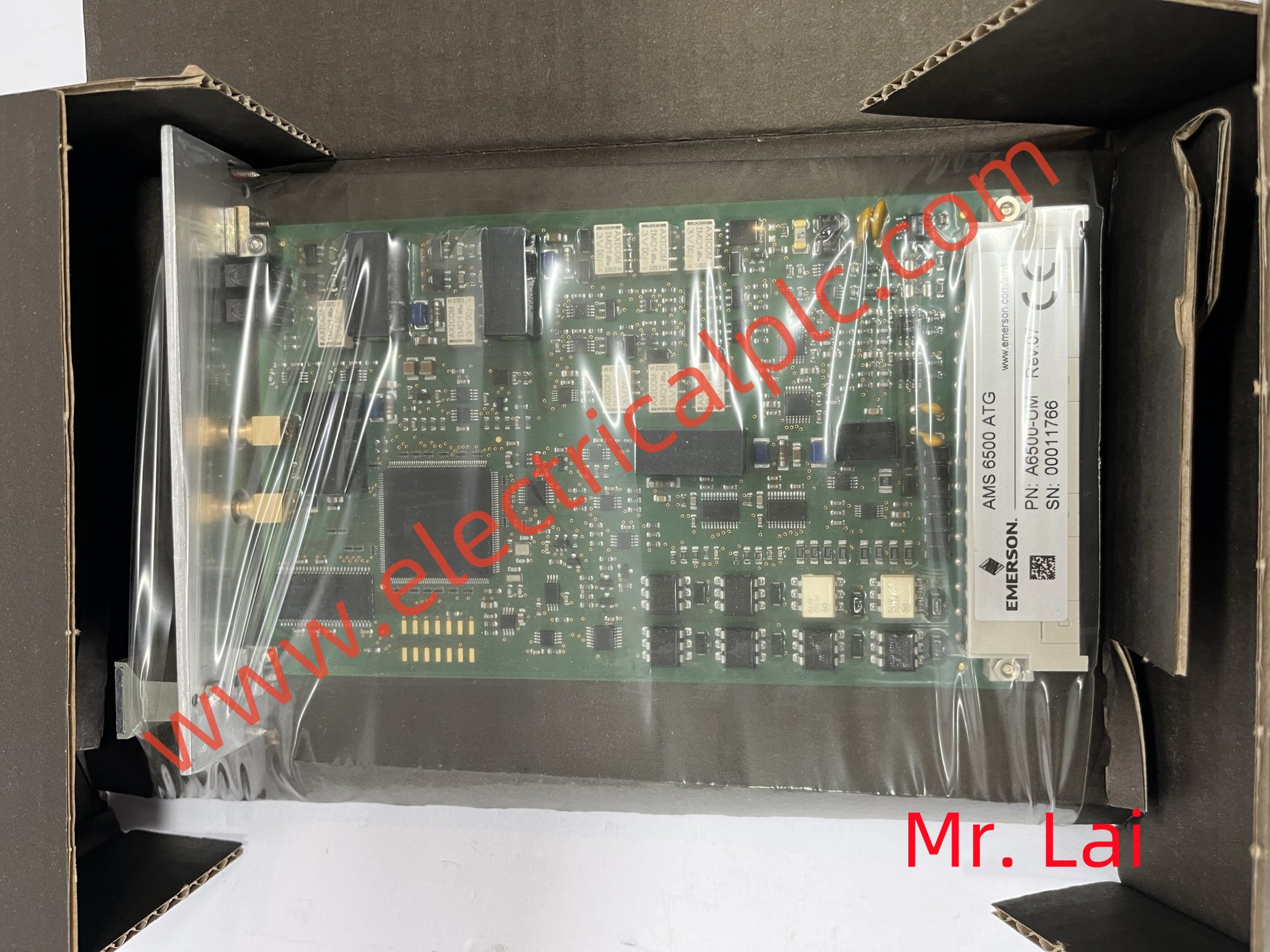

The A6500-UM universal measurement card is a component of the AMS 6500 ATG mechanical protection system.
The card is equipped with 2 sensor input channels (independent or combined, depending on the selected measurement mode),
The most common sensors that can be used are eddy current, piezoelectric (accelerometer or speedometer), earthquake (electrodynamic)
LF (low-frequency bearing vibration), Hall effect, and LVDT (used in conjunction with A6500-LC) sensors.
In addition, the card also includes 5 digital inputs and 6 digital outputs.
The measurement signal is transmitted to the A6500-CC Com card through the internal RS 485 bus,
And convert to Modbus RTU and Modbus TCP/IP protocols for further transmission to the host or analysis system.
In addition, Com cards can also communicate with personal computers/laptops through the USB interface on the panel,
In order to configure the card and display the measurement results. In addition, measurement results can also be output through 0/4-20 mA analog output.
These outputs have a common ground and are electrically isolated from the system power supply.
The operation of the A6500-UM universal measurement card is carried out in the A6500-SR system rack, which also provides connections for power supply voltage and signals.
The A6500-UM universal measurement card provides the following functions:
Absolute shaft vibration
Shaft relative vibration
Axis eccentricity
Piezoelectric vibration of shell
Thrust and rod position, differential and shell expansion, valve position
Speed and keys
Dual channel, 3U size, 1-slot plug-in module reduces cabinet space requirements by half compared to traditional four channel 6U cards.
Compliant with API 670 standard, hot swappable module.
Remote selection of limit doubling and trip bypass.
Front and rear buffering and proportional output, 0/4-20mA output.
The self checking function includes monitoring hardware, power input, hardware temperature, sensors and cables
Hardware temperature, sensors, and cables
